Navigator™
Multi-Purpose Portable Balances Suitable for Everyday Weighing

NVT4201

Maximum Capacity 4,200 g
Readability 0.1 g
Pan Size 6.9 in x 9.1 in (174 mm x 230 mm)
Item Number: 30456417
Overview
OHAUS raises the bar in price-performance ratio with the newly-designed Navigator series which is perfect for general weighing applications in laboratory, industrial and education settings. Ruggedly constructed and multifunctional, the Navigator's a powerful balance that can handle a diverse range of weighing applications with features such as fast stabilization time, overload protection at four times its rated capacity, and easy operation.
Applications
Weighing, Parts Counting, Percent Weighing, Checkweighing
Display
Liquid Crystal Display (LCD) with backlight
Operation
AC adapter (included) or 4 C batteries (not included)
Communication
RS232, USB, or Ethernet (available as accessories)
Construction
ABS housing, stainless steel pan, transportation lock, slip-resistant and adjustable feet, leveling bubble
Design Features
Menu and calibration lock switch, mechanical and software overload/underload protection, stability indicator, low battery indicator, auto shut-off, user-selectable print options, user-selectable communication settings
Specifications
Maximum Capacity 4,200 g
Readability 0.1 g
Pan Size 6.9 in x 9.1 in (174 mm x 230 mm)
Battery Life 270 Hours with Disposable Batteries
Communication Ethernet (Available as an Accessory);RS232 (Available as an Accessory);USB (Available as an Accessory)
Auxiliary Display Model Not Applicable
Dimensions 9.8 in x 2.9 in x 9.5 in (250 mm x 74 mm x 240 mm) (LxHxW)
Display LCD Display with white backlight
In-Use Cover No
Legal for Trade Not Applicable
Linearity ± 0.2 g
Net Weight 3.3 lb (1.5 kg)
Pan Construction Stainless Steel
Power 4 C (LR14) Batteries (Not Included);AC Adapter (Included)
Repeatability, typical 0.2 g
Stabilization Time 1.5 s
Tare Range To capacity by subtraction
Transportation Case Available as an Accessory
Units of Measurement Ounce Troy;Pennyweight;Newton;Grain;Gram;Kilogram;Pound;Carat;Ounce;Pound:Ounce
Working Environment 50°F – 104°F, 85%RH, non-condensing (10°C – 40°C, 85% RH, non-condensing)
Accessories

Item Number

30467963

Description

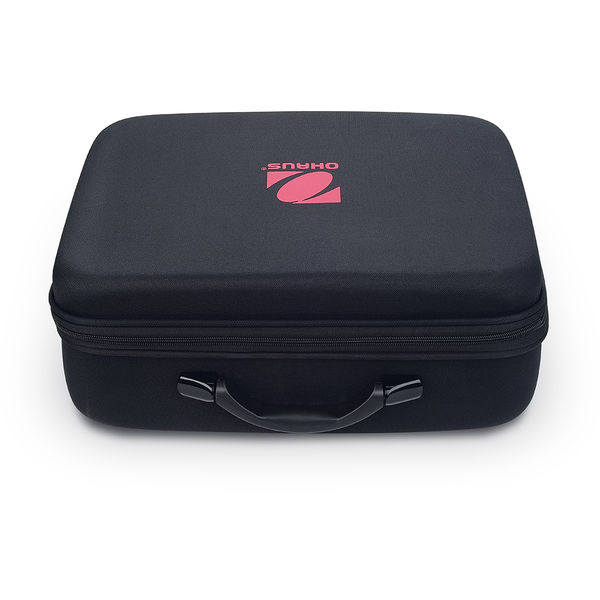

Carrying Case NV NVT

Item Number

30064203

Description

Printer, Impact, SF40A, AM

Item Number

83032109

Description

Ethernet Kit NV NVT

Item Number

83032107

Description

RS232 Kit TA NV NVT

Item Number

83032108

Description

USB Kit TA NV NVT

Item Number

30628012

Description

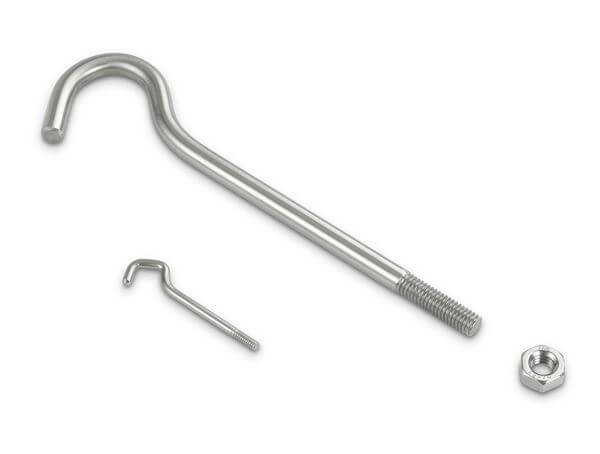

Weigh below hook NV NVT
