Defender™ 5000 Floor Scales - i-DF52
Floor Scales for Standard Industrial Applications

DF52P2500B1R

Maximum Capacity 2,500 lb (1,250 kg)
Readability 0.5 lb (0.2 kg)
Readability (Certified) 0.5 lb (0.5 kg)
Item Number: 30837696
Overview
Defender 5000 Series Floor Scales meet advanced weighing needs for industrial and commercial use. Their high-quality construction is designed to minimize flexing under heavy loads for years of dependable performance. The indicator features software for Counting, Checkweighing, Accumulation, Display Hold, and other modes. Ramps and mounting plates are available.
Applications
Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing (Display Hold), Filling
Display
Backlit Liquid Crystal Display (LCD), 256 x 80 pixels
Operation
Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory)
Communication
Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USB device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock
Construction
ABS plastic or 304 stainless steel indicator, 5 mm/0.196 in. fixed top plate, black painted steel treaded platform, IP65 stainless steel junction box with side access, alloy steel load cells, two carbon steel eye bolts, painted steel ramp available
Design Features
Four load cell mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories)
Specifications
Maximum Capacity 2,500 lb (1,250 kg)
Readability 0.5 lb (0.2 kg)
Readability (Certified) 0.5 lb (0.5 kg)
Platform Size 3 ft x 3 ft (914 mm x 914 mm)
Battery Life 10 Hours with Rechargeable Battery
Legal for Trade NTEP Certified
Dimensions 3 ft x 3.5 in x 3 ft (914 mm x 90 mm x 914 mm) (LxHxW)
Tare Range To capacity by subtraction
Working Environment -10°C – 40°C, 85%RH, non-condensing (14°F – 104°F, 85%RH, non-condensing)
Platform Construction Painted Steel Diamond Plate
Net Weight 225 lb (102 kg)
Protection Rating Not Applicable
Communication Ethernet (Available as an Accessory);2nd RS232/RS485/USB (available as an accessory);RS232 (Included);USB Host (Available as an Accessory);WiFi/Bluetooth (available as an accessory)
Power Rechargeable Battery (Not Included);AC Power (Included)
Units of Measurement Metric Tons;Kilogram;Pound;Tonne;Custom
Display Dot matrix LCD with white LED backlight
Outputs 4 - 20mA;2 In/4 Out digital I/O
Accessories

Item Number

30424404

Description

2nd RS232/RS485/USB Kit TD52 DT61XW

Item Number

30064203

Description

Printer, Impact, SF40A, AM

Item Number

30424021

Description

Alarm Beacon Kit 3 Colors 243mm OHAUS

Item Number

80251992

Description

Printer, Thermal, STP-103, US

Item Number

30424403

Description

Analog Output Kit, TD52 DT61XW

Item Number

30472064

Description

Auxiliary display AD7-RS

Item Number

30424409

Description

Cable Extension 9m D52

Item Number

80500525

Description

Cable RS232 IBM 9P Male-to-Female

Item Number

30057595

Description

Cable, RS232, 1.5m, R71 to balance

Item Number

30692384

Description

DB9 Adapter Male to Male

Item Number

30097591

Description

Discrete I/O Kit, R71 TD52 DT61XW

Item Number

30429666

Description

Ethernet kit Defender Series

Item Number

30531244

Description

Floor Stand 990mm/39in Painted

Item Number

30539553

Description

Floor Stand 990mm/39in SST

Item Number

72198344

Description

Foot plate kit Painted VE/DF-B1

Item Number

30469948

Description

In-Use-Cover, Set(10), TD52P

Item Number

30424022

Description

In-Use-Cover, TD52P

Item Number

30812889

Description

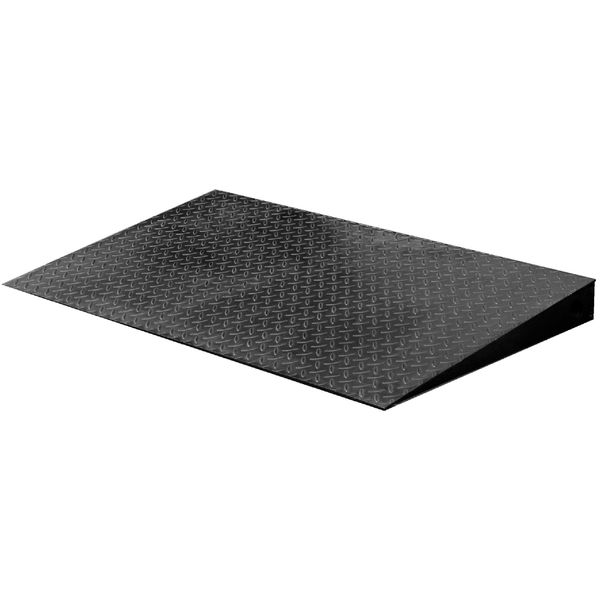

Ramp 36″, CS, for i-DFxxxB1R

Item Number

30424405

Description

Rechargeable battery Li-ion TD52

Item Number

30424406

Description

USB Host Interface for Dongle TD52

Item Number

30572923

Description

USB host interface for flash drive

Item Number

30424027

Description

Wall Mount Kit, CS, TD52P

Item Number

30412537

Description

Wireless Dongle MTICWD-200
